BS62LV2003

Features:

• Wide Vcc operation voltage : 2.4V ~ 3.6V
• Very low power consumption :
       V_cc = 3.0V     C-grade : 20mA (Max.) operating current
       I- grade : 25mA (Max.) operating current
       0.1uA  (Typ.) CMOS standby current
• High speed access time :
        -70         70ns(Max.) at V_cc = 3.0V
        -10       100ns(Max.) at V_cc = 3.0V
• Automatic power down when chip is deselected
• Three state outputs and TTL compatible
• Fully static operation
• Data retention supply volta as low as 1.5V
• Easy expansion with CE2, CE1, and OE options


Pinout

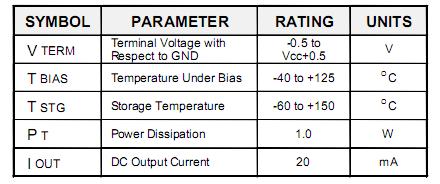

Specifications




Description

The  BS62LV2003  is  a  high  performance, very   low power  CMOS Static Random Access Memory organized as 262,144 words   by 8 bitsand operates from a wide range of 2.4V to 3.6V supply voltage.

Advanced  CMOS  technology and circuit techniques of BS62LV2003 provide both high speed and low  power features with a typical CMOS standby current of 0.1uA and maximum access time of 70ns in 3.0V operation.

Easy  memory  expansion   is   provided   by  an  active   LOW  chip enable (CE1),   an  active  HIGH  chip  enable (CE2),  and  active LOW output   enable (OE)  and  three-state output drivers.

The BS62LV2003 has an automatic  power down feature, reducing the power consumption significantly when chip is deselected.

The  BS62LV2003   is  available in the JEDEC standard  32  pin

450mil Plastic  SOP,  8mmx13.4mm STSOP

and 8mmx20mm TSOP.
