Product Details

Description



Features:

1) BR9080AF-W / ARFV-W / ARFVM-W (8k bit) : 512 words *16 bits
    BR9016AF-W / ARFV-W / ARFVM-W (16k bit) : 1024 words * 16bits
2) Single power supply operation
3) Serial data input and output
4) Automatic erase-before-write
5) Low current consumption
    Active (5V) : 5mA (max.)
    Standby (5V) : 3A (max.)
6) Noise filter built into SK pin
7) Write protection when VCC is low
    Inhibition on inadvertant write with the WC pin.
8) SOP8 / SSOP-B8 / MSOP8
9) High reliability CMOS process
10) 100,000 ERASE / WRITE cycles
11) 10 years Data Retention


Application

Movie, camera, cordless telephones, car stereos, VCRs, TVs, DIP switches, and other battery-powered equipment requiring low voltage and low current


Pinout

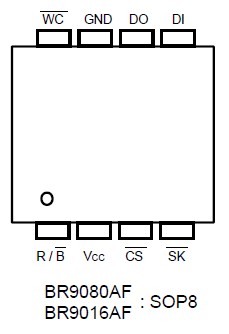

Connection Diagram




Specifications

Parameter
Symbol
Limits
Unit
Applied voltage
Vcc
0.3 ~ + 6.5
V
Power dissipation
Pd
DIP8
SOP8
SSOP-B8
500*1
350*2
300*3
mW
Storage temperature
Tstg
65 ~ + 125
°C
Operating temperature
Topr
40 ~ + 85
°C
Terminal voltage
-
0.3 ~ Vcc + 0.3
V
*1 Reduced by 4.5mW for each increase in Ta of 1°C over 25°C.
*2 Reduced by 3.0mW for each increase in Ta of 1°C over 25°C.
*3 Reduced by 3.1mW for each increase in Ta of 1°C over 25°C.
