BR25L040

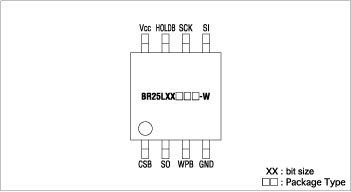

Pinout




Specifications

I/F SPI BUS Capacity (K) 4 Bit Format 512×8 Supply Voltage (V) 1.8 to 5.5 Current consumption Operating(mA) 3 Standby(µA) 2 Max.Write Cycle Time (ms) 5 Operating Temperature Range (ºC) -40 to +85 Number of Rewrite (Times) 10⁶ Data Retention (Years) 40


Description

[ BR25L040 description ]

?ROHM's high reliability serial EEPROMs BR25L040 command a large market share of BR25L040 and are available in a range of capacities, bus interfaces (Microwire, I2C, SPI), operating voltages (1.8V to 5.5V, 2.5V to 5.5V) and package types, making them ideal for battery powered devices. In addition, the entire series of BR25L040 utilizes unique double cell construction, significantly improving reliability, and are both lead-free and RoHS-compliant.
