BR24S16

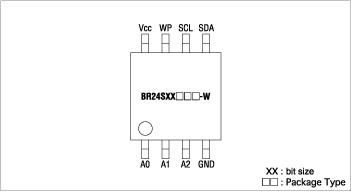

Pinout




Specifications

I/F I²C BUS Capacity (K) 16 Bit Format 2048×8 Supply Voltage (V) 1.7 to 5.5 Current consumption Operating(mA) 2 Standby(µA) 2 Max.Write Cycle Time (ms) 5 Operating Temperature Range (ºC) -40 to +85 Number of Rewrite (Times) 10⁶ Data Retention (Years) 40


Description

[ Product description ]

?ROHM's high reliability serial EEPROMs BR24S16 command a large market share of BR24S16 and are available in a range of capacities, bus interfaces (Microwire, I2C, SPI), operating voltages (1.8V to 5.5V, 2.5V to 5.5V) and package types, making them ideal for battery powered devices. In addition, the entire series of BR24S16 utilizes unique double cell construction, significantly improving reliability, and are both lead-free and RoHS-compliant.
