BR24C04FV-W

Features: 1) 128*8bits (1k) serial EEPROM. (BR24C01A-W / AF-W / AFJ-W / AFV-W) 256*8bits (2k) serial EEPROM. (BR24C02-W / F-W / FJ-W / FV-W) 512*8bits (4k) serial EEPROM. (BR24C04-W / F-W / FJ-W / FV-W)2) Two wire serial interface.3) Operating voltage range : 2.7V~5.5V4) Low current consumptionAct...

product image

BR24C04FV-W Picture
See larger image
SeekIC No. : 004301415 Detail

BR24C04FV-W: Features: 1) 128*8bits (1k) serial EEPROM. (BR24C01A-W / AF-W / AFJ-W / AFV-W) 256*8bits (2k) serial EEPROM. (BR24C02-W / F-W / FJ-W / FV-W) 512*8bits (4k) serial EEPROM. (BR24C04-W / F-W / FJ-W / F...

BR24C04FV-W Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BR24C04FV-W
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 1) 128*8bits (1k) serial EEPROM.
      (BR24C01A-W / AF-W / AFJ-W / AFV-W)
      256*8bits (2k) serial EEPROM.
      (BR24C02-W / F-W / FJ-W / FV-W)
      512*8bits (4k) serial EEPROM.
      (BR24C04-W / F-W / FJ-W / FV-W)
 2) Two wire serial interface.
 3) Operating voltage range : 2.7V~5.5V
 4) Low current consumption
     Active (at 5V) : 1.5mA (Typ.)
     Standby (at 5V) : 0.1A (Typ.)
 5) Auto erase and auto complete functions can be used during write operations.
 6) Page write function.
     BR24C01A-W / AF-W / AFJ-W / AFV-W : 8 bytes
     BR24C02-W / F-W / FJ-W / FV-W : 8 bytes
     BR24C04-W / F-W / FJ-W / FV-W : 16 bytes
 7) DATA security
     Write protect feature
     Inhibit to WRITE at low VCC
 8) Noise filters at SCL and SDA pins.
 9) Address can be incremented automatically during read operations.
10) Compact packages.
11) Rewriting possible up to 100,000 times
12) Data can be stored for ten years without corruption.


Application

VCRs, TVs, printers, car stereos, cordless telephones, short wave radios, programmable DIP switches


Pinout

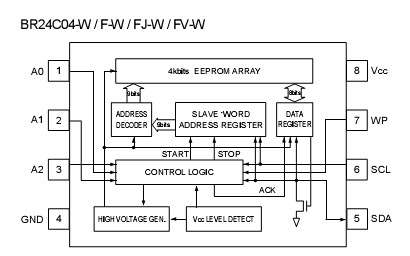

Connection Diagram


Specifications

Parameter
Symbol
Limits
Unit
Supply voltage
VCC
-0.3 to +6.5
V
Power dissipation
Pd
800(DIP8) *1
mW
450(SOP8) *2
450(SOP-J8) *2
300(SSOP-B8) *3
Storage temperature
Tstg
-65 to +125
°C
Operating temperature
Topr
-40 to +85
°C
Terminal voltage
-
-0.3 to VCC+0.3
V

*1 Reduced by 3.0mW for each increase in Ta of 1°C over 25°C.
*2 Reduced by 4.5mW for each increase in Ta of 1°C over 25°C.
*3 Reduced by 8.0mW for each increase in Ta of 1°C over 25°C.


Description

The BR24C01A-W, BR24C02-W, and BR24C04-W series are 2-wire (I C BUS type) serial EEPROMs which are
electrically programmable.
