BR24A16

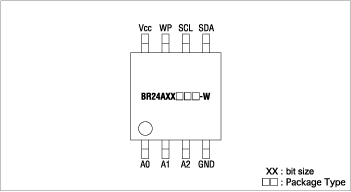

Pinout




Specifications

I/F I²C BUS Capacity (K) 16 Bit Format 2048×8 Supply Voltage (V) 2.5 to 5.5 Current consumption Operating(mA) 2 Standby(µA) 2 Max.Write Cycle Time (ms) 5 Operating Temperature Range (ºC) -40 to +105 Number of Rewrite (Times) 10⁶ Data Retention (Years) 40


Description

[ Product description ]

The BR24A16 is a  serial EEPROM(Electrically Erasable Programmable Read Only Memory) is non-volatile memory that can be overwritten electrically, in units of bytes, and is most suitable for data storage use. ROHM's high reliability serial EEPROMs are among the top of their class. They command a large market share of BR24A16 and are available in a range of capacities, bus interfaces (Microwire, I²C, SPI), operating voltages (1.8V to 5.5V, 2.5V to 5.5V) and package types, making them ideal for battery powered devices. In addition, the entire series of BR24A16 utilizes unique double cell construction, significantly improving reliability, and are both lead-free and RoHS-compliant.
