BP5081A15

AC/DC Switching Converters IC DUAL

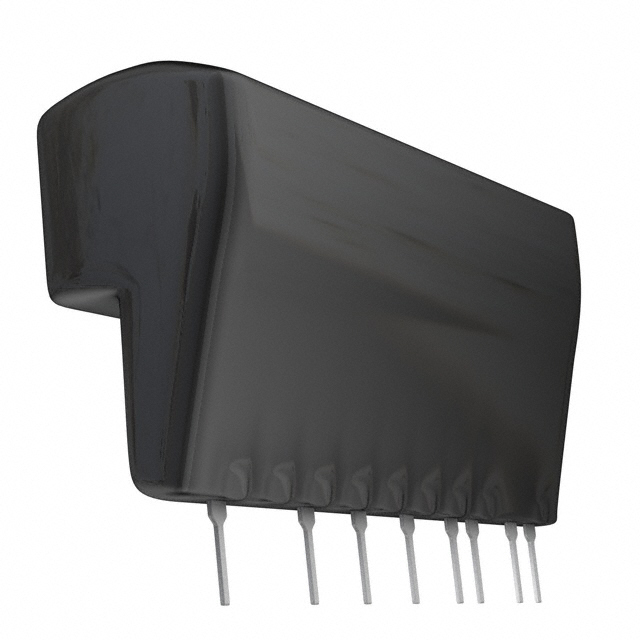

product image

BP5081A15 Picture
See larger image
SeekIC No. : 00477770 Detail

BP5081A15: AC/DC Switching Converters IC DUAL

BP5081A15 Data Sheet

floor Price/Ceiling Price

US $ 3.58~3.86 / Piece | Get Latest Price
Part Number:
BP5081A15
Mfg:
ROHM Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~120
  • 120~600
  • 600~1080
  • Unit Price
  • $3.86
  • $3.66
  • $3.58
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Input / Supply Voltage (Max) : 170 V Input / Supply Voltage (Min) : 113 V
Operating Temperature Range : - 25 C to + 80 C Packaging : Bulk

Description

Duty Cycle (Max) :
Switching Frequency :
Supply Current :
Output Voltage :
Mounting Style :
Package / Case :
Operating Temperature Range : - 25 C to + 80 C
Packaging : Bulk
Input / Supply Voltage (Min) : 113 V
Input / Supply Voltage (Max) : 170 V


Specifications

Parameter Symbol Limits Unit
Power supply voltage Vcc 170 V
Maximum output current(15v) I15max 80 mApk
Maximum output current(15v) 15max 350 mApk
ESD endurance Vsurge 2 kV
Operating temperature range Topr −25~+80 °C
Storage temperature range Tstg −25~+105 °C
Maximum surface  temperature Tmcax 105 °C



Parameters:

Technical/Catalog InformationBP5081A15
VendorRohm Semiconductor
CategoryPower Supplies
Number of Outputs2
Power (Watts)2.9W
Voltage - Output15V, 5V
Voltage - Input100V
Power Supply TypeSwitching (Closed Frame)
1st Output15 VDC @ 80 mA
2nd Output5 VDC @ 350mA
3rd Output-
4th Output-
Mounting TypeThrough Hole
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BP5081A15
BP5081A15
