BP5034

Features: ·Elimination of a transformer enables compact, lightweight power supply boards.· Wide input voltage range. (80 to 120V for AC voltage conversion)· DC circuits can be easily configured, with few attachments.· Because no transformer is used, the power supply board is less vulnerable to spl...

product image

BP5034 Picture
See larger image
SeekIC No. : 004300969 Detail

BP5034: Features: ·Elimination of a transformer enables compact, lightweight power supply boards.· Wide input voltage range. (80 to 120V for AC voltage conversion)· DC circuits can be easily configured, wit...

BP5034 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BP5034
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Elimination of a transformer enables compact, lightweight power supply boards.
· Wide input voltage range. (80 to 120V for AC voltage conversion)
· DC circuits can be easily configured, with few attachments.
· Because no transformer is used, the power supply board is less vulnerable to splitting or cracking from impact or shock.
· Hybridization of the IC reduces the number of labor hours in the assembly process.


Application

·Power supply circuits for vacuum cleaners, washing machines, refrigerators, electric carpets, electric rice cookers and crock pots, irons, cordless telephones, air purifiers, humidifiers, dehumidifiers, illumination devices and other small
household appliances, as well as power supply circuits for gas, fire and smoke alarms, DC motors, sensors, and other
similar devices

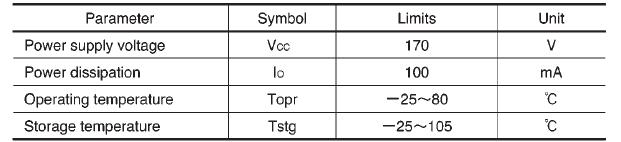

Specifications

Connection Diagram


Description

The BP5034 is an AC/ DC converter which can be used to supply +12V, 100mA DC output from a commercial power
supply (100V AC). Using BP5034 enables simple, easy drive of microcomputers, LEDs, and other electronic components without using a transformer. It also allows set PCBs to be kept compact and lightweight, with extremely few attachments.
