BP104

Photodiodes 65 Degree 215mW

product image

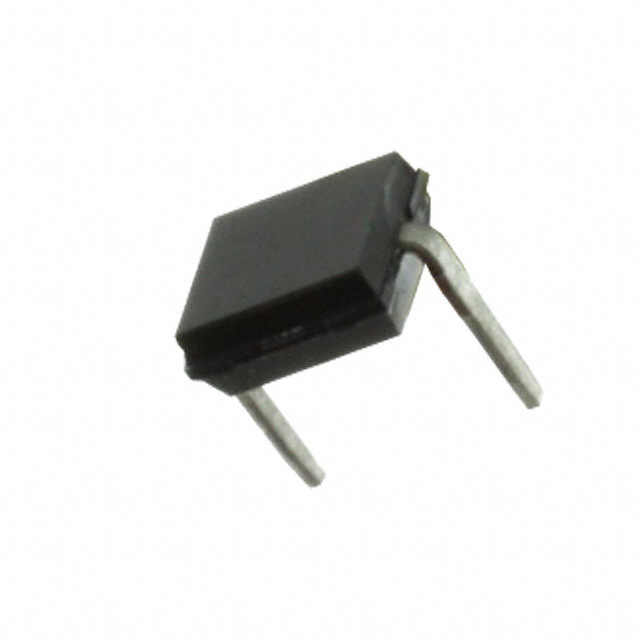

BP104 Picture
See larger image
SeekIC No. : 0082621 Detail

BP104: Photodiodes 65 Degree 215mW

BP104 Data Sheet

floor Price/Ceiling Price

US $ .37~.6 / Piece | Get Latest Price
Part Number:
BP104
Mfg:
Vishay Semiconductors
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $.6
  • $.53
  • $.42
  • $.37
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : PIN Photodiodes Reverse Voltage : 60 V
Maximum Dark Current : 30 nA Peak Wavelength : 950 nm
Rise Time : 100 ns Fall Time : 100 ns
Half Intensity Angle Degrees : 65 deg Package / Case : TO-5

Description

Product : PIN Photodiodes
Reverse Voltage : 60 V
Peak Wavelength : 950 nm
Rise Time : 100 ns
Fall Time : 100 ns
Maximum Dark Current : 30 nA
Package / Case : TO-5
Half Intensity Angle Degrees : 65 deg


Features:

Large radiant sensitive area (A=7.5 mm2)
Wide angle of half sensitivity j = ± 65
High photo sensitivity
Fast response times
Small junction capacitance
 Plastic case with IR filter (=950 nm)


Application

High speed photo detector


Specifications

Parameter
Symbol
Test Conditions
Value
Units
Reverse Voltage
VR
60
V
Power Dissipation
PV
Tamb<25 C
215
mW
Junction Temperature
Tj
100
°C
Storage Temperature Range
Tstg

55...+100
°C
Soldering Temperature
Tsd
t< 3 s
260
°C
Thermal Resistance Junction/Ambient
RthJA
350
K/W



Description

BP104 is a high speed and high sensitive PIN photodiode in a miniature flat plastic package. BP104 top view construction makes it ideal as a low cost replacement of TO5 devices in many applications. The epoxy package itself is an IR filter, spectrally matched to GaAs or GaAs on GaAlAs IR emitters (p=950nm). The large active area combined with a flat case gives a high sensitivity at a wide viewing angle.




Parameters:

Technical/Catalog InformationBP104
VendorVishay/Semiconductors
CategorySensors, Transducers
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BP104
BP104
751 1000 ND
7511000ND
751-1000
