Features:

* Double internal input and output matching for an optimum wideband capability and high gain
* Polysilicon emitter ballasting resistors for an optimum temperature profile
* Gold metallization ensures excellent reliability.


Application

* Common emitter class-A operation in linear transposers/transmitters (television) in the 470 to 860 MHz frequency band.


Pinout

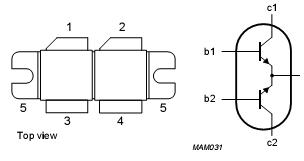

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 60 V
VCES collector-emitter voltage open base  28 V
VEBO emitter-base voltage open collector 2.5 V
IC collector current(DC) 15 A
IC(AV) average collector current 15 A
Ptot total power dissipation Tmb =70 °C; note 1; see Fig.2 145 W
Tstg storage temperature -65 +150
Tj operating junction temperature 200



Description

NPN silicon planar transistor BLV859 with two sections in push-pull configuration. The device is encapsulated in a SOT262B 4-lead rectangular flange package, with two ceramic caps. It delivers a Po sync = 20 W in class-A operation at 860 MHz and a supply voltage of 25 V.
