Product Details

Description

Features:

* High power gain
* Easy power control
* Good thermal stability
* Gold metallization ensures excellent reliability
* Designed for broadband operation.

Application

* Communication transmitters in the UHF frequency range.

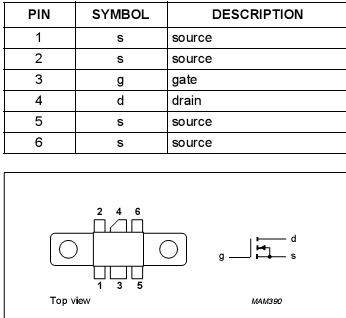

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VDS	drain-source voltage			65	V
VGS	gate-source voltage			±20	V
ID	DC drain current			3.5	A
Ptot	total power dissipation	Tmb 25 °C		48	W
Tstg	storage temperature		-65	150	C
Tj	junction temperature			200	C

Description

N-channel enhancement mode vertical D-MOS power transistor BLF544 encapsulated in a 6-lead, SOT171A flange package with a ceramic cap. All leads are isolated from the flange.

BLF544 is a marking code showing gate-source voltage (VGS) information is provided for matched pair applications.
