Product Details

Description

Features:

* High power gain
* Easy power control
* Gold metallization
* Good thermal stability
* Withstands full load mismatch
* Designed for broadband operation.

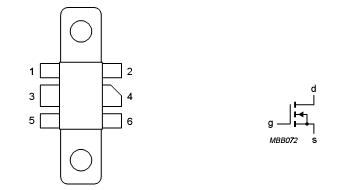

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
VDS	drain-source voltage			60	V
VGS	gate-source voltage			20	V
ID	DC drain current			1.5	A
Ptot	total power dissipation	Tmb =25 °C		20	W
Tstg	storage temperature		-65	150	C
Tj	junction temperature			200	C

Description

Silicon N-channel enhancement mode vertical D-MOS transistor BLF542 designed for large signal amplifier applications in the UHF frequency range.

The BLF542 is encapsulated in a 6-lead, SOT171 flange envelope, with a ceramic cap. All leads are isolated from the flange.
