BLF242

Features: * High power gain* Low noise* Easy power control* Good thermal stability* Withstands full load mismatch* Gold metallization ensures excellent reliability.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDS drain-source voltage 65 V V...

product image

BLF242 Picture
See larger image
SeekIC No. : 004300553 Detail

BLF242: Features: * High power gain* Low noise* Easy power control* Good thermal stability* Withstands full load mismatch* Gold metallization ensures excellent reliability.PinoutSpecifications ...

BLF242 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BLF242
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* High power gain
* Low noise
* Easy power control
* Good thermal stability
* Withstands full load mismatch
* Gold metallization ensures excellent reliability.

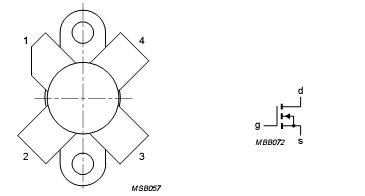

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDS drain-source voltage 65 V
VGS gate-source voltage 20 V
ID DC drain current 1 A
Ptot total power dissipation up to Tmb = 25 °C 16 W
Tstg storage temperature -65 150 C
Tj junction temperature 200 C



Description

Silicon N-channel enhancement mode vertical D-MOS transistor BLF242 designed for professional transmitter applications in the HF/VHF frequency range.

The transistor BLF242 is encapsulated in a 4-lead, SOT123 flange envelope, with a ceramic cap. All leads are isolated from the flange.
