BLF1820-70

Features: * Typical 2-tone performance at a supply voltage of 26 V and IDQ of 500 mA: Output power = 65 W (PEP) Gain = 12 dB Efficiency = 32% dim = -26 dBc* Easy power control* Excellent ruggedness* High power gain* Excellent thermal stability* Designed for broadband operation (1800 to 2000 MHz)* ...

product image

BLF1820-70 Picture
See larger image
SeekIC No. : 004300540 Detail

BLF1820-70: Features: * Typical 2-tone performance at a supply voltage of 26 V and IDQ of 500 mA: Output power = 65 W (PEP) Gain = 12 dB Efficiency = 32% dim = -26 dBc* Easy power control* Excellent ruggedness*...

BLF1820-70 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BLF1820-70
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Typical 2-tone performance at a supply voltage of 26 V and IDQ of 500 mA:
Output power = 65 W (PEP)
Gain = 12 dB
Efficiency = 32%
dim = -26 dBc
* Easy power control
* Excellent ruggedness
* High power gain
* Excellent thermal stability
* Designed for broadband operation (1800 to 2000 MHz)
* Internally matched for ease of use.


Application

* RF power amplifiers for GSM, EDGE and CDMA base stations and multicarrier applications in the 1800 to 2000 MHz frequency range.

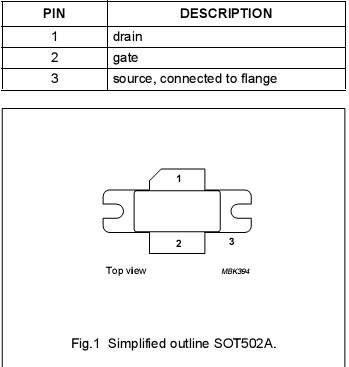

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDS drain-source voltage 65 V
VGS gate-source voltage ±20 V
ID DC drain current 9 A
Tstg storage temperature -65 150 C
Tj junction temperature 200 C



Description

70 W LDMOS power transistor BLF1820-70 for base station applications at frequencies from 1800 to 2000 MHz.
