BGY883

RF Amplifier CATV AMP MODULE

product image

BGY883 Picture
See larger image
SeekIC No. : 00612992 Detail

BGY883: RF Amplifier CATV AMP MODULE

BGY883 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BGY883
Mfg:
NXP Semiconductors
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Gain Amplifier Operating Frequency : 860 MHz
Supply Current : 235 mA Maximum Operating Temperature : + 100 C
Mounting Style : SMD/SMT Package / Case : SOT-115
Packaging : Tube

Description

Noise Figure :
Bandwidth :
Output Intercept Point :
Operating Supply Voltage :
Maximum Operating Temperature : + 100 C
Mounting Style : SMD/SMT
Packaging : Tube
Type : Gain Amplifier
Package / Case : SOT-115
Supply Current : 235 mA
Operating Frequency : 860 MHz


Features:

* Excellent linearity
* Extremely low noise
* Silicon nitride passivation
* Rugged construction
* Gold metallization ensures  excellent reliability.

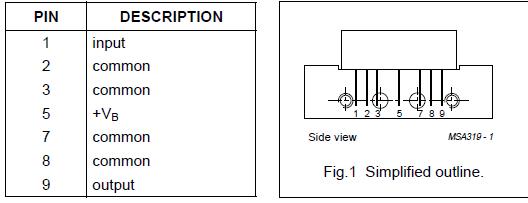

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
Vi RF input voltage 65 dBmV
Tstg storage temperature -40 100 C
Tmb mounting base operating temperature -20 100 C



Description

Hybrid amplifier module BGY883 designed for  CATV systems operating over a  frequency range of 40 to 860 MHz at
a voltage supply of 24 V (DC).
