Product Details

Description



Features:

• Low current (max. 25 mA)
• Low voltage (max. 40 V).


Application

• HF and IF stages in radio receivers
• Mixer stages in AM receivers.

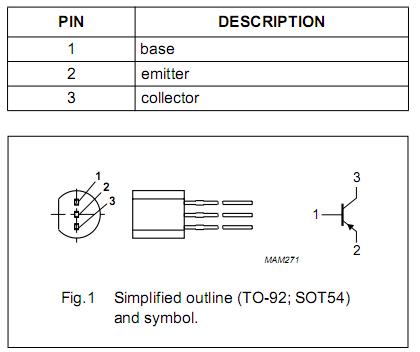

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter - −40 V
VCEO collector-emitter voltage open base - −40 V
VEBO emitter-base voltage open collector - −4 V
IC collector current (DC)   - −25 mA
ICM peak collector current   - −25 mA
Ptot total power dissipation Tamb 25 ; note 1 - 300 mW
Tstg storage temperature   −65 +150
Tj junction temperature   - 150
Tamb operating ambient temperature   −65 +150
Note
1. Transistor mounted on an FR4 printed-circuit board.


Description

PNP medium frequency transistor BF450 in a TO-92; SOT54 plastic package
