BF199

Transistors Bipolar (BJT) TRANS MED FREQ BULK DLT PIN

product image

BF199 Picture
See larger image
SeekIC No. : 00212190 Detail

BF199: Transistors Bipolar (BJT) TRANS MED FREQ BULK DLT PIN

BF199 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BF199
Mfg:
NXP Semiconductors
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : NPN Collector- Emitter Voltage VCEO Max : 25 V
Emitter- Base Voltage VEBO : 4 V Maximum DC Collector Current : 0.025 A
DC Collector/Base Gain hfe Min : 38 at 7 mA at 10 V Configuration : Single
Maximum Operating Frequency : 550 MHz Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Package / Case : SOT-54
Packaging : Bulk

Description

Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Emitter- Base Voltage VEBO : 4 V
Collector- Emitter Voltage VCEO Max : 25 V
Packaging : Bulk
Maximum DC Collector Current : 0.025 A
Package / Case : SOT-54
DC Collector/Base Gain hfe Min : 38 at 7 mA at 10 V
Maximum Operating Frequency : 550 MHz


Pinout

Connection Diagram




Specifications

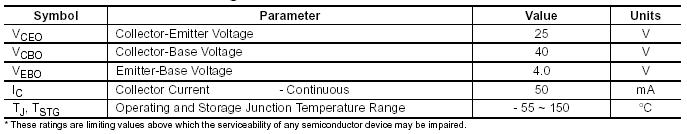

Connection Diagram




Parameters:

Technical/Catalog InformationBF199
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)25V
Current - Collector (Ic) (Max)50mA
Power - Max350mW
DC Current Gain (hFE) (Min) @ Ic, Vce38 @ 7mA, 10V
Vce Saturation (Max) @ Ib, Ic200mV @ 5mA, 10mA
Frequency - Transition1.1GHz
Current - Collector Cutoff (Max)50nA
Mounting TypeThrough Hole
Package / CaseTO-92
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BF199
BF199
BF199FS ND
BF199FSND
BF199FS
