BDX45

Features: * High current (max. 1 A)* Low voltage (max. 80 V)* Integrated diode and resistor.Application* Industrial switching applications such as: print hammers solenoids relay and lamp drivers.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VCBO collector-base vo...

product image

BDX45 Picture
See larger image
SeekIC No. : 004299354 Detail

BDX45: Features: * High current (max. 1 A)* Low voltage (max. 80 V)* Integrated diode and resistor.Application* Industrial switching applications such as: print hammers solenoids relay and lamp drivers....

BDX45 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BDX45
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* High current (max. 1 A)
* Low voltage (max. 80 V)
* Integrated diode and resistor.


Application

* Industrial switching applications such as:
  print hammers
  solenoids
  relay and lamp drivers.


Pinout

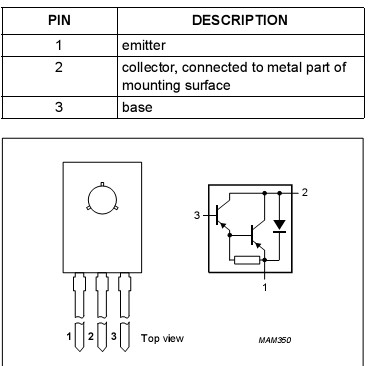

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage
BDX45
BDX47		 open emitter -
-		 -60
-90		 V
V
VCEO collector-emitter voltage
BDX45
BDX47		 VBE =0 -
-		 -45
-80		 V
V
VEBO emitter-base voltage open collector - -5 V
IC collector current (DC)   - -1 A
ICM peak collector current   - -2 A
IBM peak base current   - -100 mA
Ptot total power dissipation Tamb 25 °C - 1.25 W
Tcase 100 °C - 5 W
Tstg storage temperature   -65 +150
Tj junction temperature   - 150
Tamb operating ambient temperature   -65 +150



Description

PNP Darlington transistor BDX45 in a TO-126; SOT32 plastic package. NPN complements: BDX42 and BDX44.
