BDX35

Features: * High current (max. 5 A)* Low voltage (max. 75 V).Application* High-current switching in power applications.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VCBO collector-base voltageBDX35BDX36; BDX37 open emitter -- 100120 VV VCEO collector-emitter...

product image

BDX35 Picture
See larger image
SeekIC No. : 004299348 Detail

BDX35: Features: * High current (max. 5 A)* Low voltage (max. 75 V).Application* High-current switching in power applications.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VC...

BDX35 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BDX35
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* High current (max. 5 A)
* Low voltage (max. 75 V).




Application

* High-current switching in power applications.




Pinout

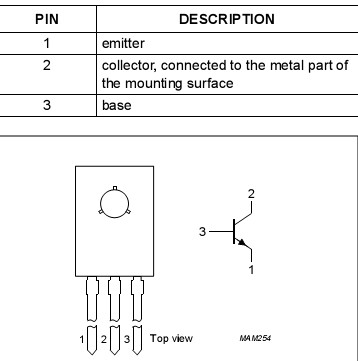

Connection Diagram




Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage
BDX35
BDX36; BDX37		 open emitter -
-		 100
120		 V
V
VCEO collector-emitter voltage
BDX35; BDX36
BDX37		 open base -
-		 60
75		 V
V
VEBO emitter-base voltage open collector - 5 V
IC collector current (DC) - 5 A
ICM peak collector current - 10 A
IBM peak base current - 2 A
Ptot total power dissipation Tamb 75 °C - 15 W
Tcase 25 °C - 1.25 W
Tstg storage temperature -65 +150
Tj junction temperature - 200
Tamb operating ambient temperature -65 +150





Description

NPN switching transistor BDX35 in a TO-126; SOT32 plastic package.
