Product Details

Description



Features:

* High current (max. 3 A)
* Low voltage (max. 45 V).


Application

* General purpose medium power applications.

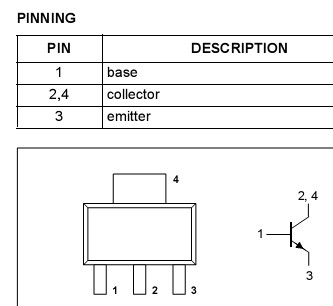

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter - 70 V
VCEO collector-emitter voltage open base - 45 V
VEBO emitter-base voltage open collector - 6 V
IC collector current (DC)   - 3 mA
ICM peak collector current   - 6 A
IBM peak base current   - 0.5 A
Ptot total power dissipation Tmb 25 °C; note 1 - 1.35 W
Tstg storage temperature   -65 +150
Tj junction temperature   - 150
Tamb operating ambient temperature   -65 +150



Description

NPN medium power transistor BDP31 in a SOT223 plastic package. PNP complement: BDP32.
