BDL31

Features: * High current (max. 5 A)* Low voltage (max. 10 V)* Low collector-emitter saturation voltage ensures reduced power consumption.Application* Battery powered units where high current and low power consumption are important.PinoutSpecifications SYMBOL PARAMETER CONDITIONS MIN. MAX....

product image

BDL31 Picture
See larger image
SeekIC No. : 004299172 Detail

BDL31: Features: * High current (max. 5 A)* Low voltage (max. 10 V)* Low collector-emitter saturation voltage ensures reduced power consumption.Application* Battery powered units where high current and low...

BDL31 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BDL31
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* High current (max. 5 A)
* Low voltage (max. 10 V)
* Low collector-emitter saturation voltage ensures reduced power consumption.


Application

* Battery powered units where high current and low power consumption are important.

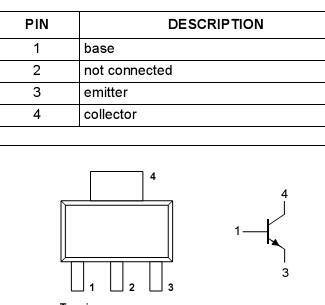

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter - 40 V
VCEO collector-emitter voltage open base - 10 V
VEBO emitter-base voltage open collector - 6 V
IC collector current (DC)   - 5 mA
ICM peak collector current   - 10 A
IBM peak base current   - 1 A
Ptot total power dissipation Tamb  25 °C - 1.35 W
Tstg storage temperature   -65 +150
Tj junction temperature   - 150
Tamb operating ambient temperature   -65 +150



Description

NPN BISS (Breakthrough In Small Signal) transistor BDL31 in a SOT223 plastic package. PNP complement: BDL32.
