BD9300F

Features: 1) 1-channel PWM control DC/DC converter controller. 2) High voltage input : 3.6 to 35V. 3) Reference voltage accuracy :±1%. 4) Oscillating frequency changeable : 20 to 800kHz. 5) Built-in UVLO (Under voltage lock out) circuit and SCP (Short circuit protection) circuit. 6) Current at st...

product image

BD9300F Picture
See larger image
SeekIC No. : 004299076 Detail

BD9300F: Features: 1) 1-channel PWM control DC/DC converter controller. 2) High voltage input : 3.6 to 35V. 3) Reference voltage accuracy :±1%. 4) Oscillating frequency changeable : 20 to 800kHz. 5) Built-in...

BD9300F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BD9300F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) 1-channel PWM control DC/DC converter controller.
2) High voltage input : 3.6 to 35V.
3) Reference voltage accuracy :±1%.
4) Oscillating frequency changeable : 20 to 800kHz.
5) Built-in UVLO (Under voltage lock out) circuit and SCP
    (Short circuit protection) circuit.
6) Current at stand-by mode : 0A (typ.)
7) Switching external synchronization available. (slave operation)


Application

*TV, power supply for liquid crystal TV, Backlight
*DSC, DVC, Printer, DVD, DVD recorder, Other consumer products



Pinout

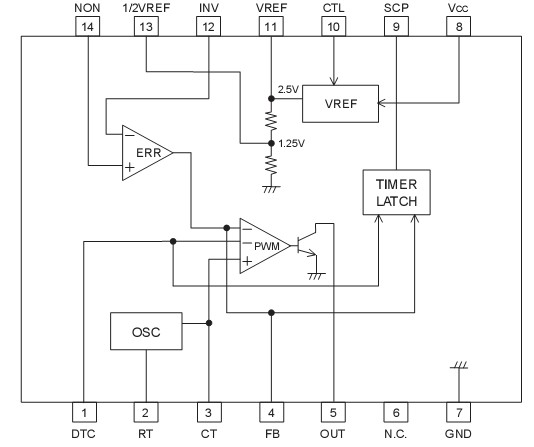

Connection Diagram


Specifications

Parameter Symbol Limits Unit
Supply voltage VCC 36 V
Power dissipation BD9300 Pd 950 *1 mW
BD9300F 450 *2
BD9300FV 400 *3
Operating temperature range Topr -40 to +85 °C
Storage temperature range Tstg -55 to +125 °C

*1  Derating : 9.5mW/°C for operation above Ta=25°C.
*2  Derating : 4.5mW/°C for operation above Ta=25°C.
*3  Derating : 4.0mW/°C for operation above Ta=25°C.
