Product Details

Description

Features:

* High current (max. 3 A)
* Low voltage (max. 45 V).

Application

* General purpose power applications.

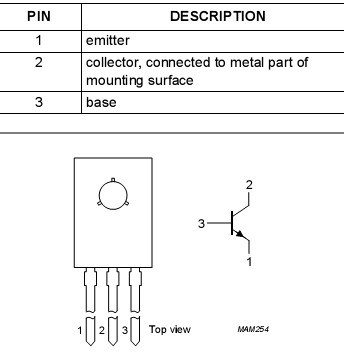

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CBO	collector-base voltage	open emitter	-	70	V
V_CEO	collector-emitter voltage	open base	-	45	V
V_EBO	emitter-base voltage	open collector	-	6	V
I_C	collector current (DC)		-	3	A
I_CM	peak collector current		-	6	A
I_BM	peak base current		-	0.5	A
P_tot	total power dissipation	Tmb 60 °C	-	15	W
T_stg	storage temperature		-65	+150
T_j	junction temperature		-	150
T_amb	operating ambient temperature		-65	+150

Description

NPN power transistor BD131 in a TO-126; SOT32 plastic package. PNP complement: BD132.
