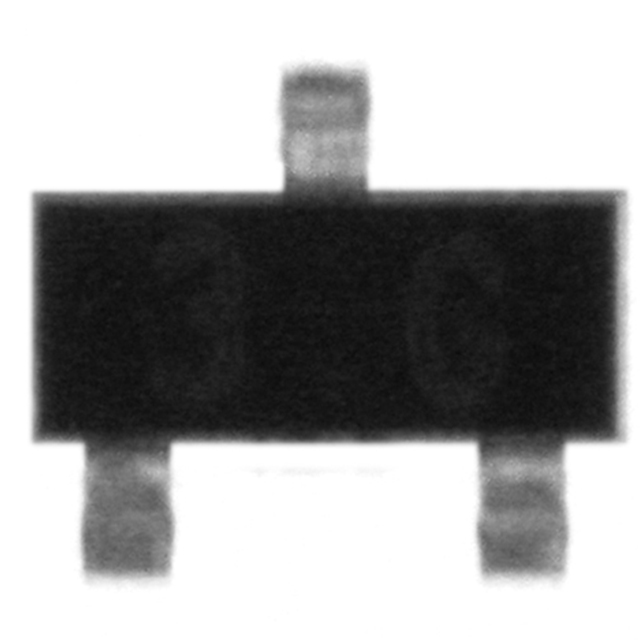

See larger image

SeekIC No. : 00208197 Detail

BC857CW-7-F: Transistors Bipolar (BJT) BIPOLAR TRANSISTOR PNP SOT-323

BC857CW-7-F Data Sheet

US $ .04~.12 / Piece | Get Latest Price

Part Number:: BC857CW-7-F
Mfg:: Diodes Inc.
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~250

Unit Price
$.12
$.11
$.07
$.04

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BC850ALT1 evaluate
Specifications Rating Symbol BC846 BC847 BC850 BC848 BC849 Unit...
BC850AMTF evaluate
US $.02 - .04 / Piece

Transistors Bipolar (BJT) SOT-23 NPN GP AMP
BC850AMTF_Q evaluate
US $.01 - .02 / Piece

Transistors Bipolar (BJT) SOT-23 NPN GP AMP

Product Details

Quick Details

Transistor Polarity :	PNP	Collector- Emitter Voltage VCEO Max :	45 V
Emitter- Base Voltage VEBO :	5 V	Maximum DC Collector Current :	0.1 A
DC Collector/Base Gain hfe Min :	420 at 2 mA at 5 V	Configuration :	Single
Maximum Operating Frequency :	200 MHz	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SOT-323
Packaging :	Reel

Description

Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : PNP
Emitter- Base Voltage VEBO : 5 V
Maximum Operating Frequency : 200 MHz
Package / Case : SOT-323
Collector- Emitter Voltage VCEO Max : 45 V
Maximum DC Collector Current : 0.1 A
DC Collector/Base Gain hfe Min : 420 at 2 mA at 5 V

Parameters:

Technical/Catalog Information	BC857CW-7-F
Vendor	Diodes Inc (VA)
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	45V
Current - Collector (Ic) (Max)	100mA
Power - Max	150mW
DC Current Gain (hFE) (Min) @ Ic, Vce	420 @ 2mA, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 500A, 10mA
Frequency - Transition	100MHz
Current - Collector Cutoff (Max)	15nA
Mounting Type	Surface Mount
Package / Case	SC-70-3, SOT-323-3
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BC857CW 7 F BC857CW7F BC857CW FDIDKR ND BC857CWFDIDKRND BC857CW-FDIDKR
