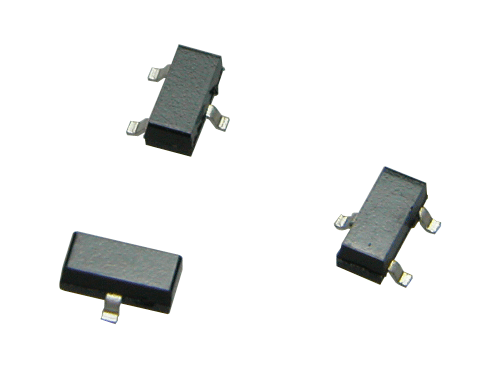

BC856

Transistor Polarity :
Collector- Emitter Voltage VCEO Max :
Emitter- Base Voltage VEBO :
Maximum DC Collector Current :
DC Collector/Base Gain hfe Min :
Configuration :
Maximum Operating Frequency :
Maximum Operating Temperature :
Mounting Style :
Package / Case :
Packaging : Reel


Features:

For AF input stages and driver applications

High current gain

Low collector-emitter saturation voltage

Low noise between 30 Hz and 15 kHz

Complementary types: BC 846, BC 847,
BC 849, BC 850 (NPN)

Pinout






Specifications

Parameter	Symbol	BC 856	Values BC 857 BC 860	BC 858 BC 859	Unit
Collector-emitter voltage	VCE0	65	45	30	V
Collector-base voltage	VCB0	80	50	30
Collector-emitter voltage	VCES	80	50	30
Emitter-base voltage	VEB0	5	5	5
Collector current	IC	100			mA
Peak collector current	ICM	200
Peak base current	IBM	200
Peak emitter current	IEM	200
Total power dissipation, T =71	Ptot	330			mW
Junction temperature	Tj	150
Storage temperature range	Tstg	65 . + 150

Description

Bipolar transistors BC856, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron)
