Product Details

Description

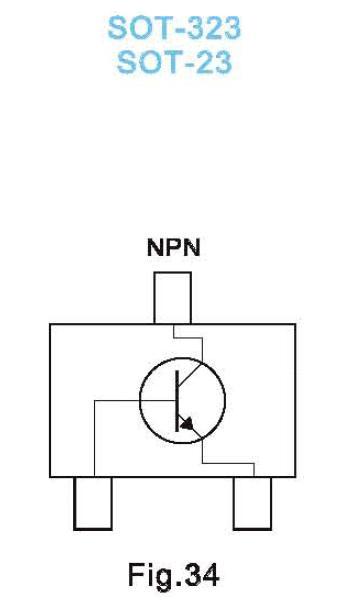

Pinout

Specifications

		BC846W	BC 847W BC 850W	BC848W BC849W
Collector-Emitter-voltage B open	V_CES	65V	45V	30V
Collector-Base-voltage E open	V_CB0	80V	50V	30V
Emitter-Base-voltage C open	V_EB0	6V		5V
Power dissipation Verlustleistung	P_tot	200 mW¹ )
Collector current Kollektorstrom (DC)	I_C	100 mA
Peak Collector current Kollektor-Spitzenstrom	I_CM	200 mA
Peak Base current Basis-Spitzenstrom	I_BM	200 mA
Peak Emitter current Emitter-Spitzenstrom	-I_EM	200 mA
Junction temperature Sperrschichttemperatur	T_j	150
Storage temperature Lagerungstemperatur	T_S	- 65.+ 150

¹) Mounted on P.C. board with 3 mm²copper pad at each terminal.
