BC807F

Features: * Suitable for AF-Driver stage and low power output stages* Complementary Pair with BC817FPinoutSpecifications PARAMETER SYMBOL Ratings UNIT Collector-Base Voltage VCBO -50 V Collector-Emitter Voltage VCEO -35 V Emitter-Base Voltage VEBO -5 V Collector curren...

product image

BC807F Picture
See larger image
SeekIC No. : 004297328 Detail

BC807F: Features: * Suitable for AF-Driver stage and low power output stages* Complementary Pair with BC817FPinoutSpecifications PARAMETER SYMBOL Ratings UNIT Collector-Base Voltage VCBO -50 V...

BC807F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BC807F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Suitable for AF-Driver stage and low power output stages
* Complementary Pair with BC817F

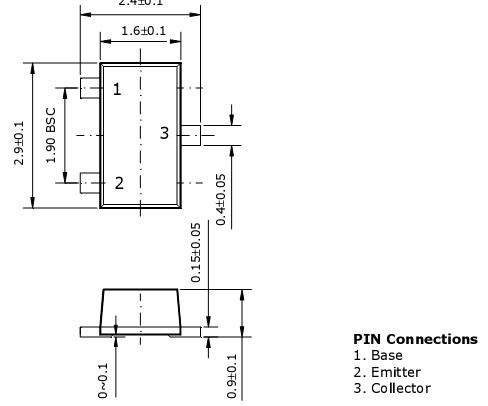

Pinout

Connection Diagram






Specifications

PARAMETER SYMBOL Ratings UNIT
Collector-Base Voltage VCBO -50 V
Collector-Emitter Voltage VCEO -35 V
Emitter-Base Voltage VEBO -5 V
Collector current IC -800 mA
Collector dissipation PC 200 mW
Junction temperature Tj 150
Storage temperature Tstg -55~150





Description

The BC807F features are as follows:
* High current application
* Switching application

Bipolar transistors BC807F, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron)
