BAW76TR

Rectifiers Hi Conductance Fast

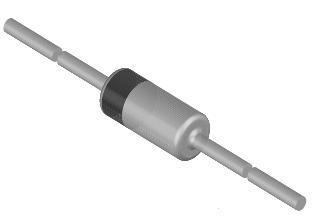

product image

BAW76TR Picture
See larger image
SeekIC No. : 00172073 Detail

BAW76TR: Rectifiers Hi Conductance Fast

BAW76TR Data Sheet

floor Price/Ceiling Price

US $ .02~.04 / Piece | Get Latest Price
Part Number:
BAW76TR
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.04
  • $.04
  • $.03
  • $.02
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Ultra Fast Recovery Rectifiers Configuration : Single
Reverse Voltage : 75 V Forward Voltage Drop : 1 V at 0.1 A
Recovery Time : 4 ns Forward Continuous Current : 0.3 A
Max Surge Current : 4 A Reverse Current IR : 0.1 uA
Mounting Style : Through Hole Package / Case : DO-35
Packaging : Reel

Description

Product : Ultra Fast Recovery Rectifiers
Reverse Current IR : 0.1 uA
Packaging : Reel
Configuration : Single
Mounting Style : Through Hole
Recovery Time : 4 ns
Forward Continuous Current : 0.3 A
Max Surge Current : 4 A
Package / Case : DO-35
Forward Voltage Drop : 1 V at 0.1 A
Reverse Voltage : 75 V


Parameters:

Technical/Catalog InformationBAW76TR
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Diode Type Standard
Voltage - DC Reverse (Vr) (Max)75V
Current - Average Rectified (Io)300mA
Voltage - Forward (Vf) (Max) @ If1V @ 100mA
Reverse Recovery Time (trr)4ns
Current - Reverse Leakage @ Vr100nA @ 50V
SpeedFast Recovery =< 500ns, > 200mA (Io)
Mounting TypeThrough Hole, Axial
Package / CaseDO-35, Axial
PackagingTape & Reel (TR)
Capacitance @ Vr, F2pF @ 0V, 1MHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BAW76TR
BAW76TR
