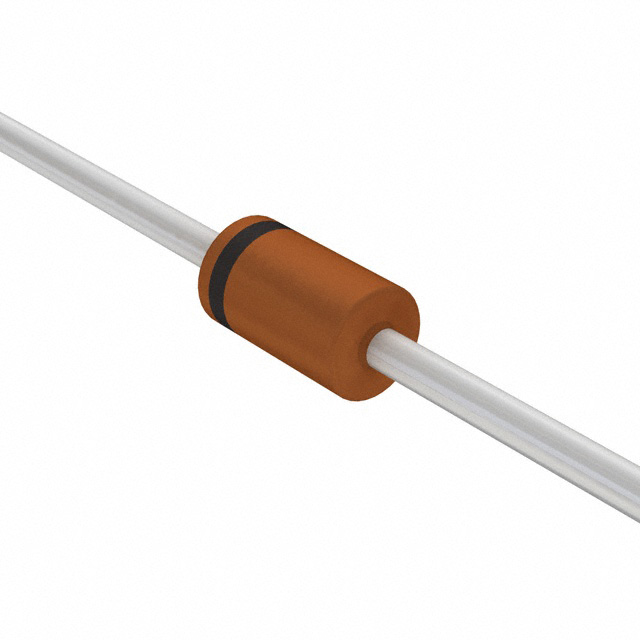

BAT85,113

Maximum Power Dissipation :
Mounting Style : Through Hole
Configuration : Single
Product : Schottky Diodes
Peak Reverse Voltage : 30 V
Packaging : Reel
Forward Continuous Current : 0.2 A
Recovery Time : 4 ns
Operating Temperature Range : + 125 C
Forward Voltage Drop : 0.8 V at 0.1 A
Maximum Reverse Leakage Current : 2 uA at 25 V
Max Surge Current : 5 A
Package / Case : DO-34


Parameters:

Technical/Catalog Information	BAT85,113
Vendor	NXP Semiconductors (VA)
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	800mV @ 100mA
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	2A @ 25V
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Through Hole, Axial
Package / Case	DO-34
Packaging	Digi-Reel?
Capacitance @ Vr, F	10pF @ 1V, 1MHz
Drawing Number	568; SOD68; ;
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BAT85,113 BAT85,113 568 1617 6 ND 56816176ND 568-1617-6
