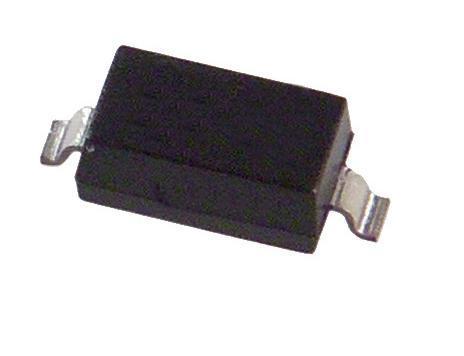

BAT54T1: Schottky (Diodes & Rectifiers) 30V 400mW Single
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Product : | Schottky Diodes | Peak Reverse Voltage : | 30 V | ||
Forward Continuous Current : | 0.2 A | Max Surge Current : | 0.6 A | ||
Configuration : | Single | Recovery Time : | 5 ns | ||
Forward Voltage Drop : | 0.8 V at 0.1 A | Maximum Reverse Leakage Current : | 2 uA at 25 V | ||
Operating Temperature Range : | - 55 C to + 125 C | Mounting Style : | SMD/SMT | ||
Package / Case : | SOD-123 | Packaging : | Reel |
Rating | Symbol | Value | Unit |
Reverse Voltage | VR | 30 | Volts |
Forward Power Dissipation, FR5 Board(1) @ TA = 25°C Derate above 25°C |
PF | 400 3.2 |
mW mW/°C |
Thermal Resistance, Junction to Case | RJL | 174 | °C/W |
Thermal Resistance, Junction to Ambient | RJA | 492 | °C/W |
Forward Current (DC) | IF | 200 Max | mA |
NonRepetitive Peak Forward Current tp < 10 msec |
IFSM | 600 | mA |
Repetitive Peak Forward Current Pulse Wave = 1 sec, Duty Cycle = 66% |
IFRM | 300 | mA |
Junction Temperature | TJ | 125 Max | °C |
Storage Temperature Range | Tstg | 55 to +150 | °C |
