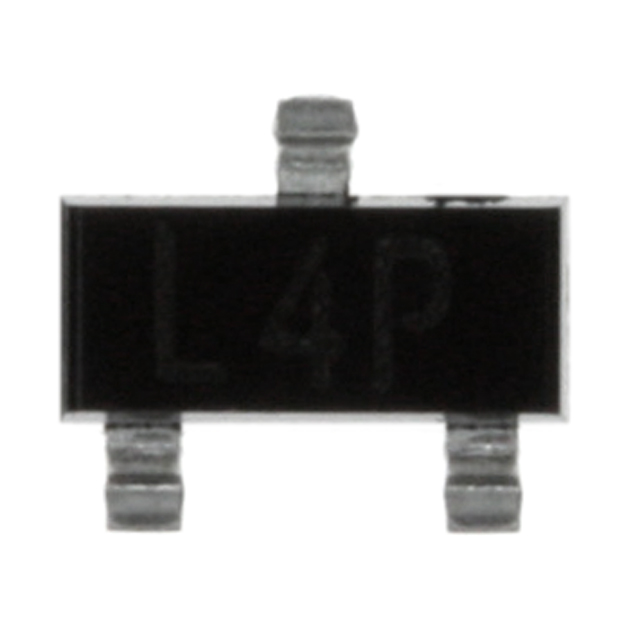

BAT54T-TP: Schottky (Diodes & Rectifiers) 200mA 30V

BAT54T-TP Data Sheet

US $ .04~.08 / Piece | Get Latest Price

Part Number:: BAT54T-TP
Mfg:: Micro Commercial Components (MCC)
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500

Unit Price
$.08
$.07
$.05
$.04

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BAT54 evaluate
US $.03 - .1 / Piece

Schottky (Diodes & Rectifiers) SOT-23 30V 200mA
BAT54 /T3 evaluate
Schottky (Diodes & Rectifiers) DIODE SCHTKY TAPE-11
BAT54(Z) evaluate
PinoutSpecifications Part Number BAT54(Z) Power Rating (mW) 330 Peak Repetitive Revers...

Product Details

Quick Details

Product :	Schottky Diodes	Peak Reverse Voltage :	30 V
Forward Continuous Current :	0.2 A	Max Surge Current :	0.6 A
Configuration :	Single	Recovery Time :	5 ns
Forward Voltage Drop :	1 V at 0.1 A	Maximum Reverse Leakage Current :	2 uA at 25 V
Operating Temperature Range :	- 65 C to + 125 C	Mounting Style :	SMD/SMT
Package / Case :	SOT-523	Packaging :	Reel

Description

Maximum Power Dissipation :
Configuration : Single
Mounting Style : SMD/SMT
Product : Schottky Diodes
Peak Reverse Voltage : 30 V
Packaging : Reel
Forward Continuous Current : 0.2 A
Operating Temperature Range : - 65 C to + 125 C
Recovery Time : 5 ns
Max Surge Current : 0.6 A
Maximum Reverse Leakage Current : 2 uA at 25 V
Forward Voltage Drop : 1 V at 0.1 A
Package / Case : SOT-523

Parameters:

Technical/Catalog Information	BAT54T-TP
Vendor	Micro Commercial Co (VA)
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	2A @ 25V
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Surface Mount
Package / Case	SOT-523
Packaging	Digi-Reel?
Capacitance @ Vr, F	10pF @ 1V, 1MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BAT54T TP BAT54TTP BAT54T TPDKR ND BAT54TTPDKRND BAT54T-TPDKR
