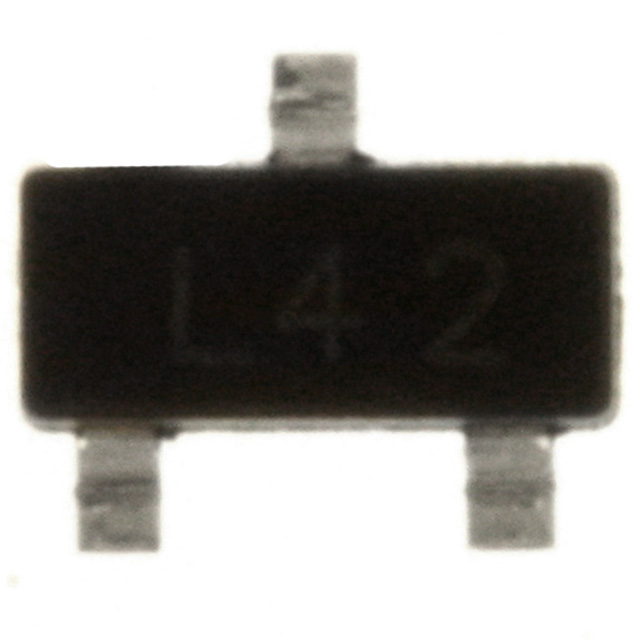

Schottky (Diodes & Rectifiers) 30V 225mW Dual
BAT54ALT1: Schottky (Diodes & Rectifiers) 30V 225mW Dual
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Product : | Schottky Diodes | Peak Reverse Voltage : | 30 V | ||
Forward Continuous Current : | 0.2 A | Max Surge Current : | 0.6 A | ||
Configuration : | Dual Common Anode | Recovery Time : | 5 ns | ||
Forward Voltage Drop : | 0.8 V at 0.1 A | Maximum Reverse Leakage Current : | 2 uA at 25 V | ||
Operating Temperature Range : | - 55 C to + 125 C | Mounting Style : | SMD/SMT | ||
Package / Case : | SOT-23 | Packaging : | Reel |
Rating |
Symbol |
Max |
Unit |
Reverse voltage |
VR |
30 |
V |
Forward Power Dissipation @ T A = 25°C Derate above 25°C |
PF |
225 1.8 |
mW mW/ |
Forward current |
IF |
200Max |
mA |
Junction temperature |
Tj |
125Max |
|
Storage temperature range |
Tstg |
55 to +150 |
BAT54ALT1 Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited.
Technical/Catalog Information | BAT54ALT1 |
Vendor | ON Semiconductor |
Category | Discrete Semiconductor Products |
Diode Type | Schottky |
Diode Configuration | 1 Pair Common Anode |
Voltage - DC Reverse (Vr) (Max) | 30V |
Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
Voltage - Forward (Vf) (Max) @ If | 800mV @ 100mA |
Current - Reverse Leakage @ Vr | 2A @ 25V |
Reverse Recovery Time (trr) | 5ns |
Speed | Small Signal =< 200mA (Io), Any Speed |
Mounting Type | Surface Mount |
Package / Case | SOT-23 |
Packaging | Tape & Reel (TR) |
Lead Free Status | Contains Lead |
RoHS Status | RoHS Non-Compliant |
Other Names | BAT54ALT1 BAT54ALT1 BAT54ALT1OSTR ND BAT54ALT1OSTRND BAT54ALT1OSTR |
