BAS40TW

Features: · Low Forward Voltage Drop· Fast Switching· Ultra-Small Surface Mount Package· PN Junction Guard Ring for Transient and ESD ProtectionPinout Specifications Part Number BAS40TW Power Rating (mW) 200 Peak Repetitive Reverse Voltage VRRM (V) 40 Forward Continuous Current...

product image

BAS40TW Picture
See larger image
SeekIC No. : 004296262 Detail

BAS40TW: Features: · Low Forward Voltage Drop· Fast Switching· Ultra-Small Surface Mount Package· PN Junction Guard Ring for Transient and ESD ProtectionPinout Specifications Part Number BAS40TW Po...

BAS40TW Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BAS40TW
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low Forward Voltage Drop
· Fast Switching
· Ultra-Small Surface Mount Package
· PN Junction Guard Ring for Transient and ESD Protection




Pinout

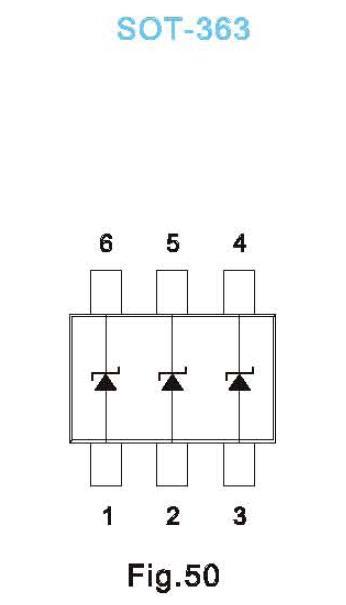

Connection Diagram




Specifications

Part Number BAS40TW
Power Rating (mW) 200
Peak Repetitive Reverse Voltage VRRM (V) 40
Forward Continuous Current IFM (mA) 200
Forward Voltage Drop VF (V) 0.38
@ IF (mA) 1
Max Reverse Current IR (µA) 0.2
@ VR (V) 30
Capacitance CTOT (typ) (pF) 5


Characteristic
Symbol
Value
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
VRRM
VRWM
VR
40
V
RMS Reverse Voltage
VR(RMS)
25
V
Forward Continuous Current (Note 1)
IFM
200
mA
Non-Repetitive Peak Forward Surge Current @ t<1.0s
IFSM
600
mA
Power Dissipation (Note 1)
Pd
200
mW
Thermal Resistance Junction to Ambient Air (Note 1)
RJA
625
K/W
Operating and Storage Temperature Range

Tj
TSTG
-55 to +125
-65 to +125
