BAS16TW

Diodes (General Purpose, Power, Switching) 75V 150mA 2pF

product image

BAS16TW Picture
See larger image
SeekIC No. : 00137362 Detail

BAS16TW: Diodes (General Purpose, Power, Switching) 75V 150mA 2pF

BAS16TW Data Sheet

floor Price/Ceiling Price

US $ .11~.25 / Piece | Get Latest Price
Part Number:
BAS16TW
Mfg:
Micro Commercial Components (MCC)
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $.25
  • $.19
  • $.14
  • $.11
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Switching Diodes Peak Reverse Voltage : 75 V
Forward Continuous Current : 150 mA Recovery Time : 4 ns
Maximum Reverse Leakage Current : 1 uA Maximum Power Dissipation : 200 mW
Operating Temperature Range : - 55 C to + 125 C Package / Case : SOT-363
Packaging : Reel

Description

Max Surge Current :
Configuration :
Forward Voltage Drop :
Product : Switching Diodes
Packaging : Reel
Maximum Reverse Leakage Current : 1 uA
Operating Temperature Range : - 55 C to + 125 C
Recovery Time : 4 ns
Peak Reverse Voltage : 75 V
Maximum Power Dissipation : 200 mW
Package / Case : SOT-363
Forward Continuous Current : 150 mA


Features:

• Power dissipation: 200mW (Tamb=25)
• Collector current:150mA

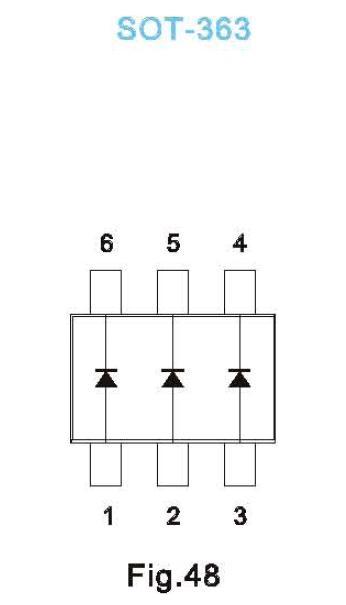

Pinout

Connection Diagram






Specifications

• Operating Temperature: -55 to +150
• Storage Temperature: -55 to +150

Part Number BAS16TW
Power Rating (mW) 200
Total Capacitance CT (pF) 2
Peak Repetitive Reverse Voltage VRRM (V) 75
Reverse Recovery Time trr (ns) 4
Max Average Rectifier Current IO (mA) 150
Max Peak Forward Surge Current IFSM (A) 2
Forward Voltage Drop VF (V) 1
Max Reverse Current IR (µA) 1





Parameters:

Technical/Catalog InformationBAS16TW
VendorMicro Commercial Co
CategoryDiscrete Semiconductor Products
Diode Type Standard
Diode Configuration3 Independent
Voltage - DC Reverse (Vr) (Max)75V
Current - Average Rectified (Io) (per Diode)150mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25V @ 150mA
Current - Reverse Leakage @ Vr1A @ 75V
Reverse Recovery Time (trr)4ns
SpeedSmall Signal =< 200mA (Io), Any Speed
Mounting TypeSurface Mount
Package / CaseSC-70-6, SC-88, SOT-323-6, SOT-363
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names BAS16TW
BAS16TW
BAS16TWMSTR ND
BAS16TWMSTRND
BAS16TWMSTR
