BA7795LS

Features: Available in compact SZIP and SSOP-A24-pin packages. High-with standing-voltage head switch (AC with standing voltage: Min. 80VP-P (f = 70kHz) ). Simple, three-mode EQ switch built-in (BA7795LS). Built-in LINE / TUNER selector switch. High-performance low-noise playback amplifier. Input ...

product image

BA7795LS Picture
See larger image
SeekIC No. : 004295897 Detail

BA7795LS: Features: Available in compact SZIP and SSOP-A24-pin packages. High-with standing-voltage head switch (AC with standing voltage: Min. 80VP-P (f = 70kHz) ). Simple, three-mode EQ switch built-in (BA7...

BA7795LS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA7795LS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Available in compact SZIP and SSOP-A24-pin packages.
High-with standing-voltage head switch (AC with standing voltage: Min. 80VP-P (f = 70kHz) ).
Simple, three-mode EQ switch built-in (BA7795LS).
Built-in LINE / TUNER selector switch.
High-performance low-noise playback amplifier. Input conversion noise figure 122dBV (Typ. Rg = 680, DIN AUDIO).
ALC level can be varied.
ALC loop external mute eliminates audible noise at power on, and ALC attack noise.
Signal processing circuit can be constructed with the addition of just a few external components.




Application

Video cassette recorders and tape decks




Pinout

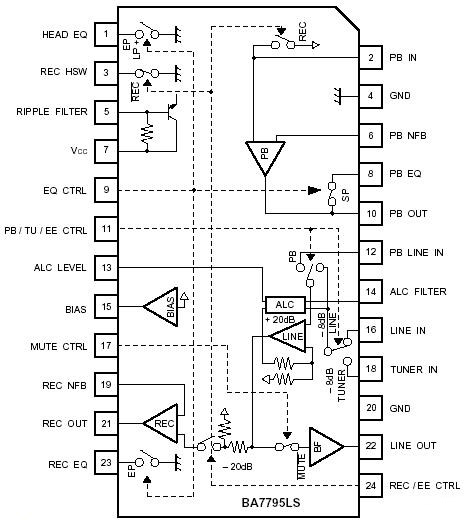

Connection Diagram


Specifications

Parameter Symbol Limits Unit
Applied voltage Vcc

 13 V
Power dissipation BA7795LS Pd
400*1		 mW
BA7795FS 800*2
Operating temperature Topr 10 ~+ 65
Storage temperature Tstg −55 ~+125



Description

The BA7795LS and BA7795FS are standard audio signal processor ICs. They contain a playback preamplifier, line amplifier, recoeding amplifier, ALC circuit, EQ switch circuit and high-voltage head switch, and provide all of the functions required for normal-audio signal processing on a single IC with a minimum number of external components required.
