Product Details

Description

Features:

Internal high-performance electronic volume with a dynamic range of 100dB (Typ.).
Internal switching between EVR ON and EVR OFF modes.
Gain of output amplifier can be set to any value between 0 and 12dB using an external resistor.
±2 power supply supported.

Application

VCRs

Pinout

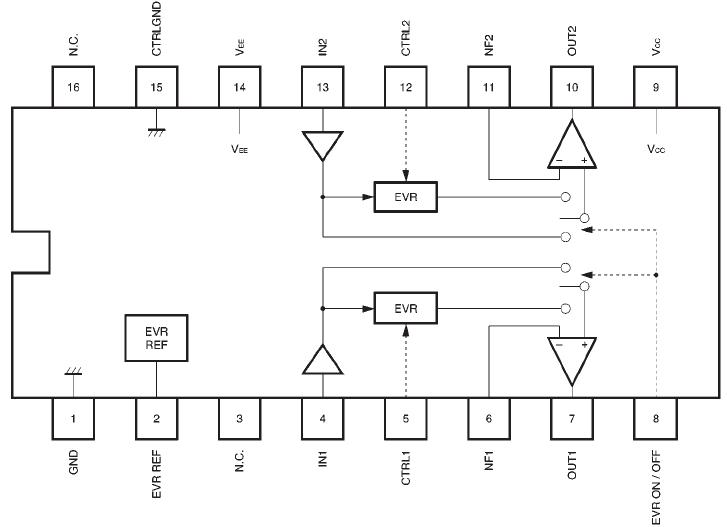

Connection Diagram

Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	V_CC	6.0	V
Power supply voltage	V_EE	-6.0	V
Power dissipation	P_d	500^*	mW
Operating temperature	T_opr	55 ~ + 125
Storage temperature	T_stg	10 ~ + 70

Description

The BA7735FS is an electronic volume IC developed for VCRs and audio devices.
