BA7726AS

Features: Internal stereo line mixer amplifier, allowing selection of through output, left output, or right output. Internal vocal elimination function, suitable for vocal faders and left and right output. Echo level and loop ratio are DC-adjustable with the internal electronic volume control (EVR...

product image

BA7726AS Picture
See larger image
SeekIC No. : 004295879 Detail

BA7726AS: Features: Internal stereo line mixer amplifier, allowing selection of through output, left output, or right output. Internal vocal elimination function, suitable for vocal faders and left and right ...

BA7726AS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA7726AS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Internal stereo line mixer amplifier, allowing selection of through output, left output, or right output.
Internal vocal elimination function, suitable for vocal faders and left and right output.
Echo level and loop ratio are DC-adjustable with the internal electronic volume control (EVR).
Internal microphone ON / OFF switch.
Vocal detection.
Internal microphone ALC function.
Internal anti-popping circuit.




Application

Portable CD stereos with karaoke functions, VCRs, mini component stereo systems, LD players


Pinout

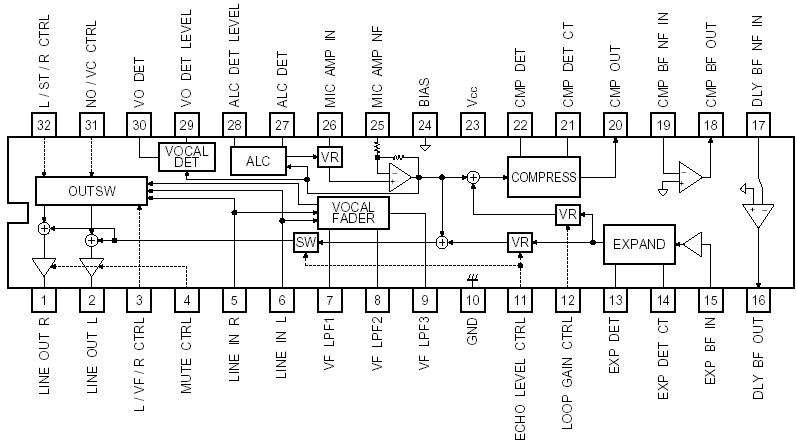

Connection Diagram


Specifications

Parameter Symbol Limits Unit
Power supply voltage Vcc

 14 V
Power dissipation Pd BA7726AS 1250*1 mW
BA7726AFS 850*2
Operating temperature Topr 10 ~ + 70
Storage temperature Tstg 55 ~ + 125



Description

The BA7726AS and BA7726AFS are analog companders for karaoke echo systems and have internal logarithmic compression and expansion circuits, a stereo line mixer amplifier, vocal fader function, vocal detection function, microphone ALC, microphone ON / OFF switch, and output switch. When used together with the BU9252 8-bit digital delay, these ICs form a high-grade karaoke echo system with minimum components.
