BA7645N

Features: 4-input / 1-output switches. Built-in mute. Sync-tip inputs. Wide operating supply voltage range (4.5V to 13.0V). Low power consumption (48mW Typ.). Excellent frequency characteristics (10MHz, 0dB Typ.). Wide dynamic range (3.5VP-P Typ.). Low interchannel crosstalk ( 65dB Typ., f = 4.43...

product image

BA7645N Picture
See larger image
SeekIC No. : 004295859 Detail

BA7645N: Features: 4-input / 1-output switches. Built-in mute. Sync-tip inputs. Wide operating supply voltage range (4.5V to 13.0V). Low power consumption (48mW Typ.). Excellent frequency characteristics (10...

BA7645N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA7645N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 4-input / 1-output switches.
Built-in mute.
Sync-tip inputs.
Wide operating supply voltage range (4.5V to 13.0V).
Low power consumption (48mW Typ.).
Excellent frequency characteristics (10MHz, 0dB Typ.).
Wide dynamic range (3.5VP-P Typ.).
Low interchannel crosstalk ( 65dB Typ., f = 4.43MHz).




Application

Video cassette recorders and televisions


Pinout

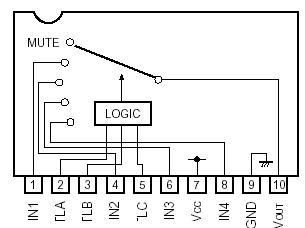

Connection Diagram


Specifications

Parameter Symbol Limits Unit
Power supply voltage Vcc

 13.5 V
Power dissipation Pd 850* mW
Operating temperature Topr -25~+75
Storage temperature Tstg -55~+125



Description

The BA7645N is a four-channel analog multiplexer with mute, designed for use in video cassette recorders. It features a large dynamic range, and wide operating frequency range, and has sync-tip inputs which are ideal for switching video signals.
