BA7625, US $ .87-.87, BA7625 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003538433 Detail

BA7625: IC SWITCHER VIDEO SIGNAL DIP16

BA7625 Data Sheet

US $ .87~.87 / Piece | Get Latest Price

Part Number:: BA7625
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1000

Unit Price
$.87

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

BA7602 evaluate
US $.59 - .59 / Piece

IC SWITCHER VIDEO SIGNAL DIP16
BA7602F evaluate
Features: Three 2-input / 1-output switches. 5V power supply. Low power consumption (70mW Typ.). E...
BA7602F-E2 evaluate
US $.91 - .91 / Piece

Video ICs 4.5-5.5V 14mA 50ns

Product Details

Quick Details

Series:	-	Manufacturer:	Rohm Semiconductor
Type:	Video Signal Switcher	Applications:	AV Amplifiers
Propagation Delay Time :	60 ns	Mounting Type:	Through Hole
Package / Case:	16-DIP (0.300", 7.62mm)	Supplier Device Package:	16-DIP

Description

Series: -
Packaging: Tube
Mounting Type: Through Hole
Manufacturer: Rohm Semiconductor
Supplier Device Package: 16-DIP
Applications: AV Amplifiers
Package / Case: 16-DIP (0.300", 7.62mm)
Type: Video Signal Switcher

Features:

5-input / 3-output switches.
Sync-tip clamp inputs.
Built-in 6dB amplifiers.
5V supply voltage.

Application

AV amplifiers and video selectors

Pinout

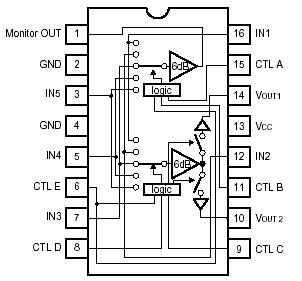

Connection Diagram

Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	V_cc	9	V
Power dissipation	P_d	500^*	mW
Operating temperature	T_opr	-25~+70
Storage temperature	T_stg	-55~+125

Description

The BA7625 is a video signal switch that contains two five-channel analog multiplexers and wide-band 6dB amplifiers. It designed for use in video cassette recorders. By simply adding transistor buffers to the outputs,it is possible to construct arecord / playback switch for two record / playback VCRs, and three video playback machines (eg.laser disk players). Input switching and VCR record switching can be done independently. The BA7625 has sync-tip clamp inputs which are ideal for switching video signals.

Parameters:

Technical/Catalog Information	BA7625
Vendor	Rohm
Category	Integrated Circuits (ICs)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BA7625 BA7625

Customers Who Bought This Item Also Bought

BA7623F-E2
US $$0.30 - 0.30 / Piece

Supply Ability:100Month

View details
BA7623F-E2
US $$0.30 - 0.42 / Piece

Supply Ability:1Day

View details
BA7657S
US $$0.10 - 0.33 / Piece

Supply Ability:10000Week

View details
BA7660FS
US $$0.41 - 0.41 / Piece

Supply Ability:100Month

View details
BA7660FS-E2
US $$0.41 - 0.41 / Piece

Supply Ability:100Month

View details

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.

BA7625

product image

floor Price/Ceiling Price

Price Break

Month Sales

Rating

Payment Methods

Recent History

Quick Details

Description

Customers Who Bought This Item Also Bought

Programmers, Development Systems(1039)

Power Supplies - Board Mount(3035)

Undefined Category(248)

Static Control, ESD, Clean Room Products(496)

Motors, Solenoids, Driver Boards/Modules(2035)

Semiconductor Modules(17785)
