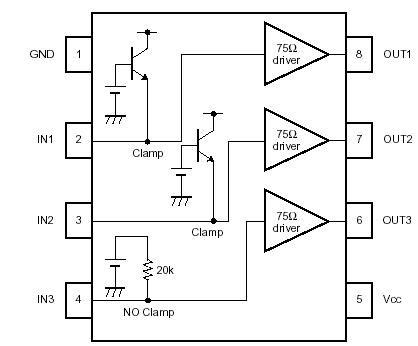

Features: 1) Two built-in clamp circuits.2) Simultaneous drive of Y, C and composite video signals possible.3) Each output can drive two loads.ApplicationVideo cassette recorders, televisions and camcordersPinoutSpecifications Parameter Symbol Limits Unit Power supply voltage ...
BA7622F: Features: 1) Two built-in clamp circuits.2) Simultaneous drive of Y, C and composite video signals possible.3) Each output can drive two loads.ApplicationVideo cassette recorders, televisions and ca...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
1) Two built-in clamp circuits.
2) Simultaneous drive of Y, C and composite video signals possible.
3) Each output can drive two loads.
Parameter |
Symbol |
Limits |
Unit |
Power supply voltage |
VCC |
8.0 |
V |
Power dissipation |
Pd |
550* |
mW |
Operating temperature |
Topr |
20 ~ +65 |
°C |
Storage temperature |
Tstg |
55 ~ + 125 |
°C |
