BA7605N

Features: Two 2-input / 1-output switches. Sync-tip clamped inputs. 5V power supply. Low power consumption (42mW Typ.). Excellent frequency characteristics (10MHz, 0dB Typ.). Wide dynamic range (2.9VP-P Typ.). Fast switching speed (50ns Typ.).Application Video cassette recorders and televisionsPin...

product image

BA7605N Picture
See larger image
SeekIC No. : 004295838 Detail

BA7605N: Features: Two 2-input / 1-output switches. Sync-tip clamped inputs. 5V power supply. Low power consumption (42mW Typ.). Excellent frequency characteristics (10MHz, 0dB Typ.). Wide dynamic range (2.9...

BA7605N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA7605N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Two 2-input / 1-output switches.
Sync-tip clamped inputs.
5V power supply.
Low power consumption (42mW Typ.).
Excellent frequency characteristics (10MHz, 0dB Typ.).
Wide dynamic range (2.9VP-P Typ.).
Fast switching speed (50ns Typ.).




Application

Video cassette recorders and televisions


Pinout

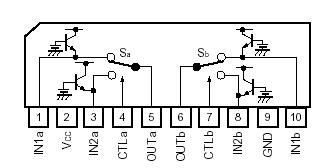

Connection Diagram


Specifications

Parameter Symbol Limits Unit
Power supply voltage Vcc

 9 V
Power dissipation Pd 500* mW
Operating temperature Topr 40~+ 85
Storage temperature Tstg −55 ~+125



Description

The BA7605N is a switching IC developed for use in VCRs. It has two two-channel analog multiplexers with a large dynamic range, and wide operating frequency range. The switch has sync-tip clamped inputs and is ideal for switching video signals.
