Product Details

Description

Features:

All filters required for SECAM chroma signal processing are provided.
Built-in chroma killer circuit.
Built-in switch circuit for selecting PAL chroma or SECAM chroma for the PB / REC system output.

Application

SECAM and VHS format video cassette recorders and camcorders

Pinout

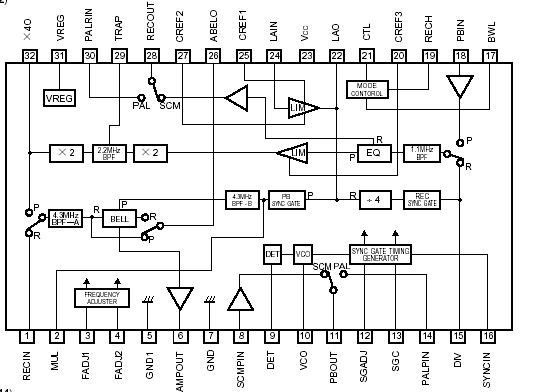

Connection Diagram

Specifications

Parameter		Symbol	Limits	Unit
Power supply voltage		V_cc	7	V
Power dissipation	BA7207AS	P_d	1400 (SDIP32)^*1	mW
	BA7207AK		850 (QFP44)^*2
Operating temperature	BA7207AS	T_opr	25 ~ + 75
	BA7207AK		25 ~ + 65
Storage temperature		T_stg	55 ~ + 125

Description

The BA7207AS and BA7207AK are LSI components that incorporate the contain circuitry required for SECAM chroma signal processing. The ICs have both recording and playback systems and each includes a bell filter, a bandpass filter, a limiter amplifier, a multiply-by-four circuit, a divide-by-four circuit, and a sync-gate circuit.
