Product Details

Description

Features:

4-channel BTL driver in a HSOP 28-pin package, ideal for application miniaturization.
Wide dynamic range.
Driver gain is adjustable with an attached resistor.
Independent power supply for each preamplifier and power amplifier, for drives that operate efficiently on low voltages.
Power amplifier current drops to an extremely low level when the preamplifier power supply is lowered, allowing for a standby mode.

Application

CD players, CD-ROM drives and other optical disc devices

Pinout

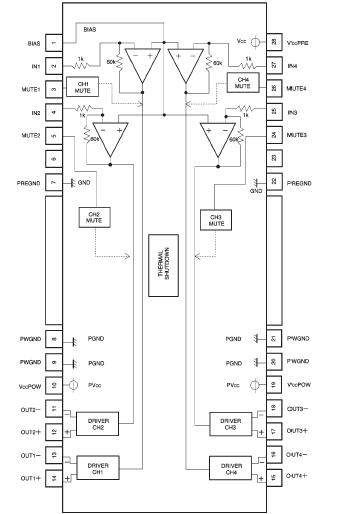

Connection Diagram

Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	V_cc	18	V
Power dissipation	P_d	1800^*	mW
Operating temperature	T_opr	-30~+85
Storage temperature	T_stg	-55~+150

Description

The BA6892FP is a 4-channel H-bridge BTL driver for CD players. Independent power supplies for each predriver and power driver assure efficient operation at low voltages. Each channel is independently mutable.
