Features:

Linear drive system provides low switching noise.
Constant supply voltage pin for hall devices.
High ratio of output current against control current. (4000 Typ.)
Available in compact surface-mount packages.

Application

VCR cylinder motors

Pinout

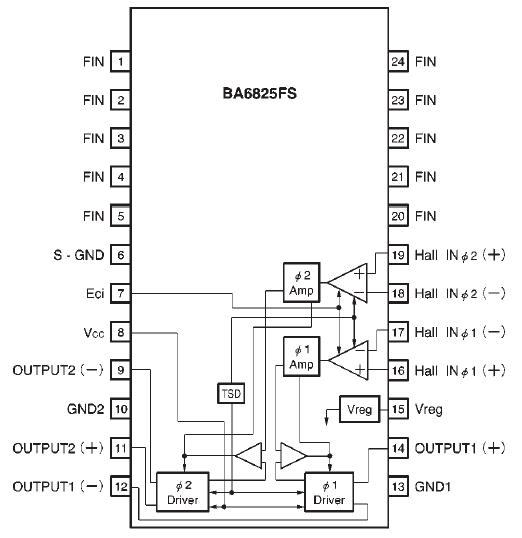

Connection Diagram

Specifications

Parameter		Symbol	Limits	Unit
Applid voltage		V_cc	24	V
Power dissipation	BA6825FS	P_d	1200^*1	mW
Power dissipation	BA6826FS	P_d	1000^*2	mW
Operating temperature		T_opr	-25~+75
Storage temperature		T_stg	-55~+150
Output current		I_OMax	1200^*3	mA
Input current		I_ECIMax	5	mA

Description

The BA6825FS and BA6826FS are direct-drive motor drivers suitable for 2-phase, full-wave linear motors. They consist of a Hall amplifier control circuit and driver circuits.
