Product Details

Description



Features:

1) Uses dynamic-drive system to display two 12-point channels. 28-pin SOP package.
2) AC and DC inputs provided. Switching function allows two-mode display.
3) Upper 8 points have peak hold function in AC mode (two seconds typ.).
4) Power-on mute function.
5) Forced-mute function.
6) Terminal for meter sensitivity adjustment provided (adjustment with one terminal is possible).
7) I2L injector current terminal provided.
8) Square root compression amplifier built in.
9) Dynamic-drive system reduces the power dissipation of the fluorescent display tube power supply.




Application

Level meters for all types of AV equipment


Pinout

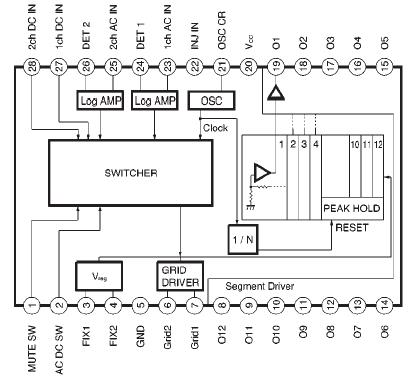

Connection Diagram

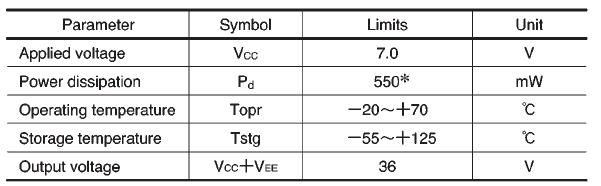

Specifications

Connection Diagram
