IC DRIVER BTL 5CHANNEL HSOP28
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: 1) Output voltage can be freely set using the output voltage setting pin.2) Internal mut...
Series: | - | Manufacturer: | Rohm Semiconductor | ||
Type: | Driver | Supply Voltage - Max : | + 5.25 V | ||
Applications: | CD/CD-ROM Driver | Mounting Type: | Surface Mount | ||
Package / Case: | 28-HSOP | Supplier Device Package: | 28-HSOP |
5-channel BTL driver in a HSOP 28-pin package, ideal for application miniaturization.
Internal level shifting circuit reduces the number of external components.
Gain is adjustable with an attached resistor.
Internal thermal shutdown circuit.
Internal 5V regulator. (attached PNP transistor required)
Parameter | Symbol | Limits | Unit |
Power supply voltage | Vcc |
18 | V |
Power dissipation | Pd | 1.7*1 | W |
Operating temperature | Topr | -35~+85 | |
Storage temperature | Tstg | -55~+150 |

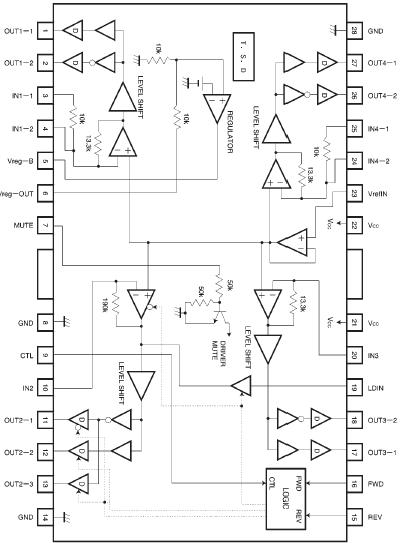

The BA6795FP is a 5-channel BTL power driver for CD players and has an internal 5V regulator (attached PNP transistor required). The loading and spindle motor output pins are dual-use output pins and are switched between drivers using a control input. In addition, the internal level shifting circuit reduces the number of external components.
Technical/Catalog Information | BA6795FP |
Vendor | Rohm Semiconductor |
Category | Integrated Circuits (ICs) |
Type | * |
Applications | * |
Package / Case | 28-HSOP |
Packaging | Tube |
Drawing Number | * |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | BA6795FP BA6795FP |
