Product Details

Description

Features:

3-phase, full-wave soft switching drive system.
Digital servo circuit.
Power save circuit.
Hall power supply switch.
Motor speed changeable.
Index amplifier.

Application

Floppy disk drivers

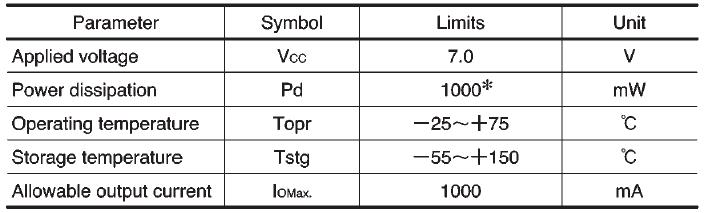

Specifications

Connection Diagram

Description

The BA6477FS is a one-chip IC designed for driving FDD spindle motors. This high-performance IC employs a 3-phase, full-wave soft switching drive system, and contains a digital servo, an index amplifier, and a power save circuit. The compactly packaged IC reduces the number of external components required.
