Product Details

Description

Features:

HSOP 28-pin package allows for miniaturization of applications.
Low number of external components.
Driver gain is adjustable with a single attached resistor.
Internal 5V regulator. (requires attached PNP transistor)
Internal standard operational amplifier.
Internal thermal shutdown circuit.

Application

CD players and CD-ROM drives

Pinout

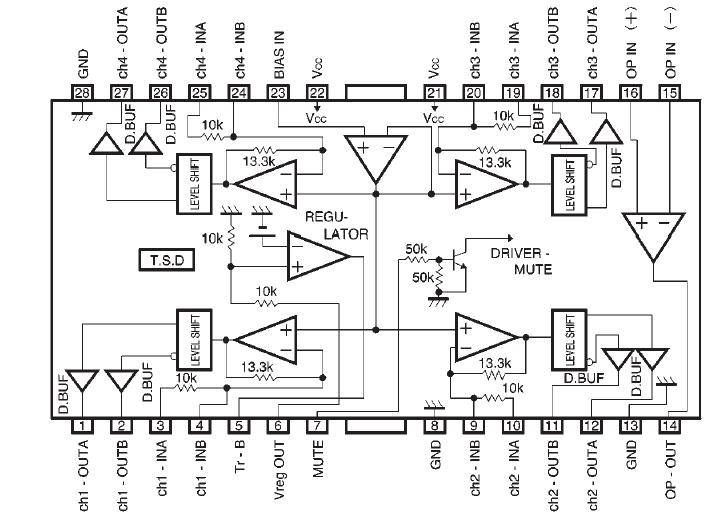

Connection Diagram

Specifications

Parameter	Symbol	Limits	Unit
Power supply voltage	V_cc	18	V
Power dissipation	P_d	1.7^*1	W
Operating temperature	T_opr	-35~+85
Storage temperature	T_stg	-55~+150

Description

The BA6397FP is a 4-channel BTL driver for CD player motors and actuators. The 5V regulator and internal standard operational amplifier make this IC suited to a broad range of applications.
