Features: Reversible-motor driver with dual independent channels. Four modes forward, reverse, stop (free rotation) and brake are output according to control logic input (two inputs). Output voltage is set with the Vref pin. Internal power supply voltage drop mute circuit. Internal thermal shutdo...
BA6193: Features: Reversible-motor driver with dual independent channels. Four modes forward, reverse, stop (free rotation) and brake are output according to control logic input (two inputs). Output voltag...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Reversible-motor driver with dual independent channels.
Four modes forward, reverse, stop (free rotation) and brake are output according to control logic input (two inputs).
Output voltage is set with the Vref pin.
Internal power supply voltage drop mute circuit.
Internal thermal shutdown circuit.
Negative power supply.
Parameter | Symbol | Limits | Unit |
Power supply Voltage | VCC | 18 | V |
Logic input pin voltage | VFIN,VRIN | 22 | V |
Power dissipation | Pd | 1000* | mW |
Operating temperature | Topr | -25~+75 | |
Storage temperature | Tstg | -55~+150 |

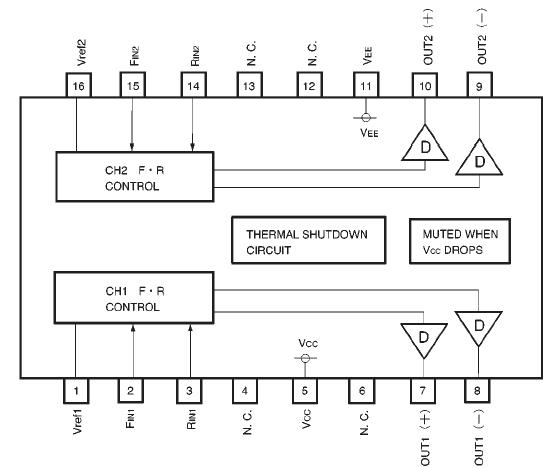

The BA6193 is a 2-channel motor driver for CD player changers and electric volume switches, and other applications as well. Because it uses a negative power supply, this IC uses the power supply of application products efficiently.
