BA527

Features: ` Rated power output is 800mW (VCC = 6V and a 4 load (THD = 10%). Maximum output is 1300mW.` Pin compatible with the Rohm BA526 power amplifier, and can be interchanged to suit the application.` Compact 9-pin SIP package that does not require a heatsink. Allows more compact set designs, ...

product image

BA527 Picture
See larger image
SeekIC No. : 004295578 Detail

BA527: Features: ` Rated power output is 800mW (VCC = 6V and a 4 load (THD = 10%). Maximum output is 1300mW.` Pin compatible with the Rohm BA526 power amplifier, and can be interchanged to suit the applica...

BA527 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA527
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Rated power output is 800mW (VCC = 6V and a 4 load (THD = 10%). Maximum output is 1300mW.
` Pin compatible with the Rohm BA526 power amplifier, and can be interchanged to suit the application.
` Compact 9-pin SIP package that does not require a heatsink. Allows more compact set designs, and is
    easy to mount.
` High ripple rejection ratio (55dB) and generates almost no "pop" noise.
` Excellent low voltage characteristics (starts operating at SV  2.8V).


Application

·Portable cassette recorders and radio cassette recorders


Pinout

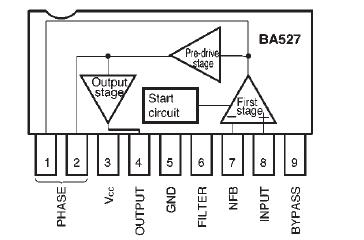

Connection Diagram


Specifications

Parameter
Symbol
Limits
Unit
Power supply voltage
VCC
9
V
Power dissipation
Pd
950(1)
mW
Operating temperature
Topr
10 ~ + 65
°C
Storage temperature
Tstg
30 ~ + 125
°C

(1)Reduced by 9.5 mW for each increase in Ta of 1 over 25


Description

The BA527 is a monolithic power amplifier designed for portable cassette players and radio cassette players. With a 6V power supply, it has a rated output of 800mW into a 4W load (THD = 10%). It is a high-grade design that generates almost no audible switching noise, and is ideal for high-end compact cassette players (including those with radio).
